Respiratory synchronization Motion Phantom
Stand-alone type respiratory synchronization phantom drive
Using a respiratory monitoring device such as Abches, the irradiation accuracy can be verified with up to 9 types of Respiratory motion patterns registered in this device.
- Maximum drive load：15kg
- Drive pattern：Cos4、Cos6
- Drive cycle：3 seconds, 4.5 seconds, 6 seconds
Overview of the drive unit

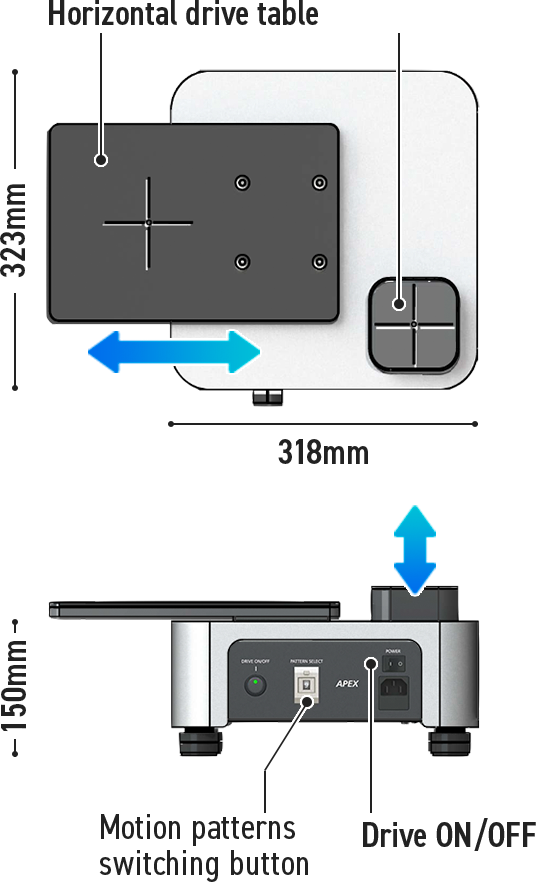

| H-axis: Horizontal drive table | Driving range: Repetitive movement of 0 to 3 cm Table dimension：W300 ✕ D200 ✕ H12mm |
|---|---|
| V-axis: Vertical drive table (To set the respiratory sensor) |
Driving range: Repetitive movement of 0 to 2 cm Table dimension： W100 ✕ D100 ✕ H10mm |
| Motion selection | Motion can be selected from 9 patterns |
| Maximum phantom load | 15kg |
